Plate Magnets

MSI Agriculture   MSI Mining   MSI Pharmaceutical   MSI FoodMSI Wood

MSI manufactures a variety of plate magnets in any number of housing configurations to work in specific applications. Typically, plate magnets in their various forms, are used in higher volume applications where the constriction of other designs is not practical. Plate magnets are also used where the recovery of fine ferrous is less of a concern.

Product Options

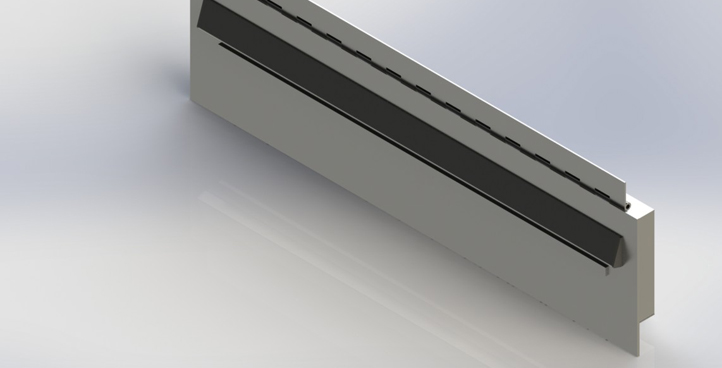

Ramped Pole Plate Magnet

The most common application of the plate magnet is the ramped pole plate design. This magnetic separator is installed on the underside of chutes, typically with an incline of 30 to 60 degree. As burden flows over the separator, it is briefly suspended in free fall by the ramp. The pole intensifier, strategically located at this point, then quickly pulls the tramp material out of the flow of burden. This combination is very effective for separation in high volume applications (provided that the burden depth is not too high) and is employed in the hump magnet, hammermill magnet, and chute separator designs. MSI’s free testing allows our customers to make informed decisions and purchase with confidence.

Ramped Pole Plate Magnet Ramp Pole Plate Magnet Separation

MSI Hump MagnetHump Magnet

The hump magnet is a series of two plate magnets placed into a housing on the under side of the product flow. The product enters the housing, cascades over the first plate magnet, then is “flipped” and flows over the second plate magnet. This design exposes the tramp metal to a magnetic pickup zone even in high-volume applications due to the placement of the magnets in the housing.

Cleaning hump magnets is easy. The magnets are hinged on one side, they swing open and wipe off. The magnets can also have a stripper faceplate, which allows for EZ-Clean or self-cleaning designs.

Closed Hammermill MagnetHammermill Magnet

The “hammermill” magnet gets it’s name from the most common piece of equipment it is used to protect and is essentially, one half of a hump magnet. These are employed not only in the protection of hammermills, but any downstream equipment that has a moderate burden depth or where a hump magnet is not practical (e.g. limited vertical space).

MSI Magnetic Chutes

Magnetic Chute Separators

For the least amount of flow restriction possible, MSI offers the magnetic chute separator. It is, per it’s namesake, essentially a continuation of the existing chute and even comes in configurations that have no restrictions whatsoever. Magnetic chute separators are employed in vertical drops and have powerful magnetic elements on each side. As the burden flows down, the tramp material is pulled out. Like drawer magnets, these are available in manual clean, EZ-Clean, and self-cleaning styles. For larger openings, a wedge can be used in the center position.

MSI Simple Plate Magnet

Simple Plate Magnet

The simple plate magnet is typically installed over burdens and works by pulling tramp material out of the flow. These magnets can act in the same manner as a suspended magnet over small belts or likewise in chutes that have low burden heights.

Product Details

Product Specifications

Material

  • Ceramic
  • Rare earth (N50 and N52 grades standard, high temperature, and others available)
  • Alnico
  • Hybrids and combinations

Configurations

  • Flush
  • Pole Intensifier
  • Ramped
  • Ramped with Pole Intensifier (most popular)
  • Various magnetic circuits for burden depth

Cleaning

  • Manual Clean
  • EZ-Clean
  • Self-Cleaning

Other Options

  • Customized housings and transitions
  • Various grades of finish, such as standard industrial or fully welded, ground smooth, and polished for food applications
  • Fully sealed for fluid applications

Ramped Pole Plate Magnet Technical Data Sheet

Click on the link below or the embedded PDF to view the product tech sheet. Full screen and PDF download options are available.

Ramped Pole Plate Magnet Tech Sheet PDF

Hump Magnet Technical Data Sheet

Click on the link below or the embedded PDF to view the product tech sheet. Full screen and PDF download options are available.

Hump Magnet Tech Sheet PDF

Magnetic Chute Separator Technical Data Sheet

Click on the link below or the embedded PDF to view the product tech sheet. Full screen and PDF download options are available.

Chute Separator Tech Sheet PDF

Contact Magnetic Systems International today at 877-968-5025
with any product questions, specific needs, or unique/custom applications.
